High speed steel rod bending center
- Packaging:
- international standard wooden box
- Productivity:
- 200
- Brand:
- luteng
- Transportation:
- Ocean
- Place of Origin:
- china
- Supply Ability:
- 10
- Certificate:
- iso9001
- HS Code:
- 8455102000
- Port:
- Qingdao,Shanghai,Tianjin
Basic Info
Model No.: LTWQ12-32
Product Description
1. The equipment has two independent bending centers, which can bend the various shapes of stirrups at the same time or independently, greatly improving the efficiency and working speed, reducing labor and cost.
2. The bending mainframe adopts Japanese original technology and mechanical principle, the structure design is reasonable, the bending force is large, and the angle adjustment is convenient and accurate.
3, automatic movement system, servo motor drive and rack and pinion drive, small error, fast response.
4. The electronic control system adopts PLC programmable control, which can realize automatic fault recognition, graphic editing, technology and other functions.
5. It is a must-have tool for standardization construction of steel processing plants.
Technical Parameters
| Rated power | 16kw | Max. bending speed | 72º/sec | |||||||
| Air pressure | 0.8Mpa | Weight | 3.8T | |||||||
| Max. bending angle | -120º | L*W*H | 12000*2000*1400 mm | |||||||
| +180º | ||||||||||
| Max. length of stirrup side | 10m | Electric consumption | 5kw/h | |||||||
| Min. bending side length | 800 mm | Steel bar diameter | 10 | 12 | 14 | 16 | 20 | 22 | 25 | 28 |
| Bending head moving speed | 0.5-2m/sec | Bending quality | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 1 |

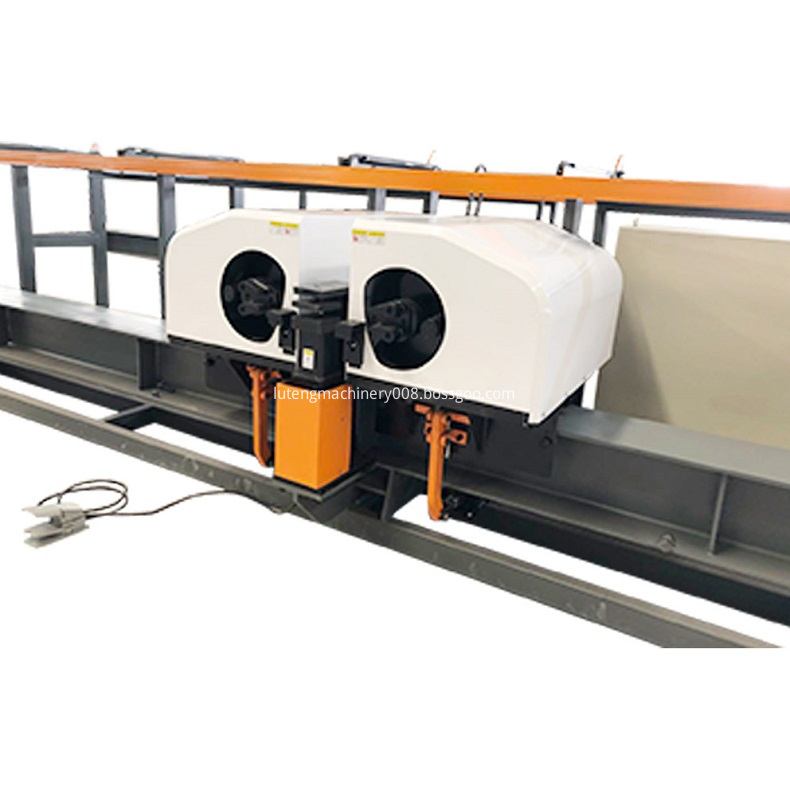

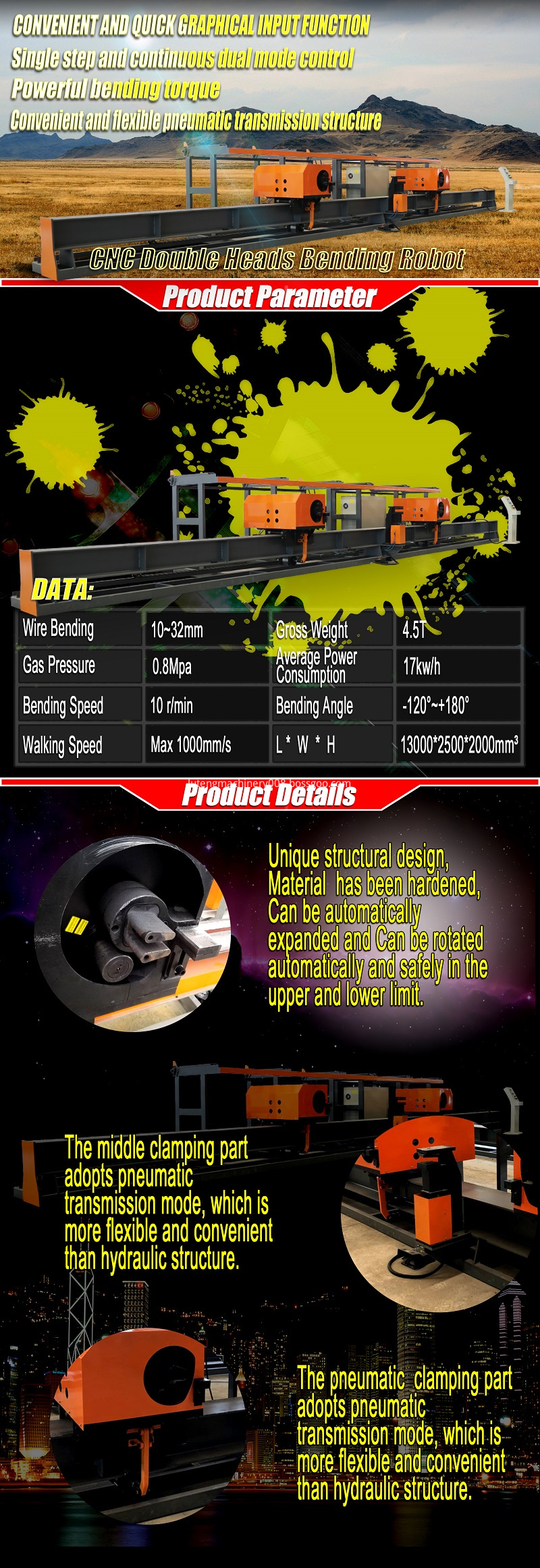

Product Pictures
Company Information
Shandong Luteng Building Equipment Co., Ltd. is a professional bending machine manufacturer in China, which was established in 2014 and located in the hometown of Confucius and Mencius -Jining City, Shandong Province. Our main products are: CNC Stirrup bending machine, Double head bending machine, Cage welding machine etc..
The company has a strong research personnel, with rich experience and the production of innovative thinking. We are able to provide our customers top quality products, competitive price, fast delivery and satisfactory service.We also can customize non-standard machines according to your requirement.
Meanwhile, we can also offer overseas installation, training, maintenance, commissioning for each client and confirm they can operate Luteng machine properly and enjoy the high performance and best service during operation.
We sincerely welcome domestic and international public communication calls and inquiries.
Hopes our absolute sincerity cooperation, creates magnificently on the basis of mutual benefit, create brilliant!
FAQ
Q: What's the producing time and delivery time?
A: Order less than 5 pcs, we have stock, delivery to Shanghai port about 5 days. And order more than 5 pcs, about 10-15 working days.
Q: What's the MOQ?
A: 5 pcs. For sample order, 1 pc is OK, there's extra port and delivery charges.
Q: What's the departure port?
A: Usually Shanghai port, Guangzhou, Qingdao, Tianjin and other Chinese port is also OK.
Q: What's the packing?
A: Iron Pallet and Polly wooden cases (no fumigation needed)
Q: What`s the payment term?
A: T/T, L/C, West union, PayPal.
Q: Can I change the motor to my local voltage and frequency, Is there any extra charge?
A: Yes, we can change the frequency and voltage to your local standard. (we can make 220V/380V/410V/415V, and 50HZ/60HZ)
There`s no extra charge.
<<<<<
