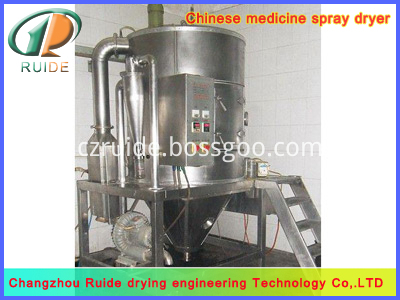

High Quality ZLPG Series Chinese Herbal Medicine Extract Spray Dryer

High Quality ZLPG Series Chinese Herbal Medicine Extract Spray Dryer

    Payment Type: L/C,T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: Wooden Case
    Productivity: 10Sets
    Brand: Ruide
    Transportation: Ocean,Land
    Place of Origin: China
    Supply Ability: 2Sets/Month
    Certificate: ISO9001

Basic Info

Model No.: ZLPG

Product Description

High Quality ZLPG Series Chinese Herbal Medicine Extract Spray Dryer,Drying Chinese Herbal Medicine Extract Spray Dryer,ZLPG Series Chinese Herbal Medicine Extract Spray Dryer,ZlPG Series Spray Dryer for Chinese Herbal Medicine Extract

Product introduction

The machine adopts full seal from.All parts are made of stainless steel.It is equipped with three grades of lter .The ltered air is one hundred thousand grades.The cooling device of wall is installed at the cylinder body .It makes the wall temperature less than 80 ℃.Air sweeping device is installed inside the drying tower . The product will not be burnt or deteriorated even stays on the way .The collection rate of powder is raised greatl y.Moreover will not cause medicine mixed or wall stick.

High Quality ZLPG Series Chinese Herbal Medicine Extract Spray Dryer

Working Principle

high-speed centrifuge atomizing for the extract of traditional Chinese medicine is an application of centrifuge atomizing technique.It is an high-speed atomizing dryer.The following problems are solved.


◎Tower body has air cooled jacket.
◎Tower body is equipped with automatic vibration device.
◎Tower body and pipe line have cleaning hole and sewage discharge hole that can open quickly.
◎Thermostat feeding tank on request.
◎Mannal high pressure washing machine on request.
◎The parts that can contact raw material are made of stainless steel (all entirely stainlesssteel).
◎The collecting of raw material adopts two grades cyclone or one-grade cyclone andone-grade wet-method-deduster .
◎The temperature of inlet air can be controlled automatically and continuously .

◎Equipped with air sweeping device on request.

Technical Parameter

Model ZLPG-15 ZLPG-20 ZLPG-25 ZLPG-32 ZLPG-38 ZLPG-40 ZLPG-47 ZLPG-52 ZLPG-58
evaporated amount of moisture(kg/h) 5 10 25 50 80 100 150 200 300
treated amount of raw material liguid(kg/h) 6-7 12-14 25-34 50-68 80-108 100-135 150-203 200-270 300-406
output of finished procuct(kg/h) 1-2 2-4 4.8-7.2 9.2-14 14.8-22.4 18.4-28 28-42 36.8-56.4 55-85
solid content of damp raw material(%) 18-25
ratio of moisture of finished product(%) 3-5
electric power(kw) 36 45 63 99 132 153 204 246 330
heating source steam plus electricity
colleting way of product and its efficiency two-grade cyclone duster of one-grade cyclone duster and one-grade damp duster ≥95%
automatic control meters and instruments indicator of temperature of hot air and humidity of air exhaust
temperature of air in 150-200
temperature of air out 80-100
overal dimensions L 5000 5500 7000 8000 9800 11000 12200 14100 15000
W 3000 3500 4000 5000 5700 6200 7000 7800 9000
(mm) H 4500 4600 5200 6500 7600 8100 9000 9850 11100

Note:*The actual diamensions are in accordance with the customer`s requirement,the above dimensions are only for reference.
* The above is the largest evaporation.
