Heat resistant PTFE open mesh for packing machine

Heat resistant PTFE open mesh for packing machine

    Payment Type: L/C,T/T,D/P,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Piece/Pieces
    Delivery Time: 5 Days
    Packaging: Export Carton
    Transportation: Ocean,Land,Air
    Port: Shanghai,Ningbo

Basic Info

Model No.: YS6008

Material: PTFE+fiberglass

Product Description

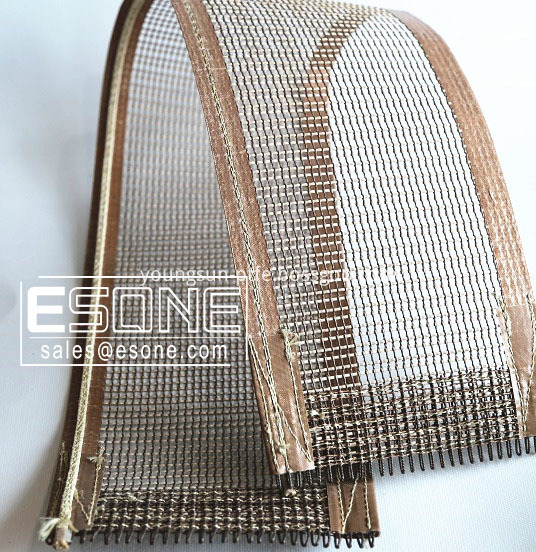

Heat resistant PTFE open mesh for Packing Machine

PTFE open mesh is coated with high quality PTFE emulsion. It's non-stick and heat resistant.Our PTFE mesh many different hole size, such as 1*1mm, 2*2.5mm, 4*4mm and 10*10mm. The color is brown or black. Different mesh sizes provide a high percentage of open surface area, allows better airflow and sufficient operation with minimum heat loss.

We can customize any size mesh belt, and any width edge protector. The joint there are many different kinds, bull nose joint and alligator joint are the most two popular. Youngsun PTFE mesh belt are widely used for printing, drying and all heating system.

Hest resistant PTFe open mesh

Performance of PTFE mesh for packing machine:

---Non-stick surface allows the foods can be easily took away from it.

---PTFE open mesh is food grade, and can ensure the food contact directly.

---Resist almost all chemicals, such as corrective agent.

---It's easy to wash it, just wash it under the water.

---Great temperature tolerance, -70 to 260 Degree .

---High tensile strength, not easily to be deformation.

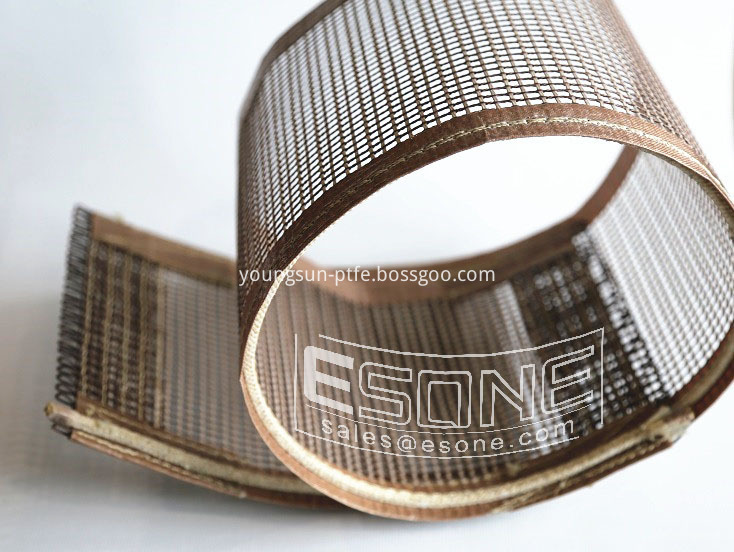

PTFE open mesh

Application of PTFE mesh belt for printing:

1) Used in drying machine and dyeing machine for textile printing, silk-printing.

2) Used in shrinking machine for garment fabric, high frequency and UV dryer.

3) Used as conveyor belt for hot - Air Dryer, food baking, quick - frozen machines, silk screen drying, UV machine, ultraviolet ray drying machine.

4) Oiling machine for paper glazing and waxing, plant engineering.

5) Separating sheet for hardboard production etc.

6) PTFE open mesh can be is widly used in drying of screen print, dying, fabric shrinking, woven, non-woven, synthetic and knitting fabrics.

Specifications of heat resistant PTFE open mesh:

Style

Standard Width(mm)

Mesh Size(mm)

Weight(g/)

Weft

Color

TensileStrength Warp/Fill(N/cm)

YS6001

1000,1500,2050,2600,2800,3200,3650,4000

1x1

/

/

Brown

446/330

YS6002

1000,1500,2050,2600,2800,3200,3650,4000

1x1

/

/

Black

446/330

YS6003

1000,1500,2050,2500,2750,3200,3350,3650,4000

4x4

460

Single weft

Black

320/434

YS6004

1000,1500,2050,2500,2750,3200,3350,3650,4000

4x4

460

Single weft

Brown

320/434

YS6008

1000,1500,1700,2050,2500,2700,3200,3400,3600,3800,4000

4x4

580

Doubleweft

Brown

360/500

YS6011

1000,1500,2500,2700,3200,3800, 4000

4x4

580

Doubleweft

White

330/470

YS6012

1000,1500,1700,2050,2500,2700,3200,3400,3600,3800,4000

4x4

580

Doubleweft

Black

360/500

YS6013

1000,1500, 2000, 3000

10x10

/

/

Brown

220/360

YS6014

1000,1500,1800,2000, 3000, 3600

2x2.5

/

/

Black

290/400

YS6015

1000,1500,1800,2000, 3000, 3600

2x2.5

/

/

Brown

290/400

YS6016

1000,1400, 2000,2800

2x4

/

/

Brown

330/470

YS6017

1000,1500, 2000, 3600,4000

5x5

/

/

Black

320/434

YS6018

1000,1400,2 000, 2800

8x8

/

/

Brown

350/480

PTFE open mesh for packing machine

  • 1
  • 2

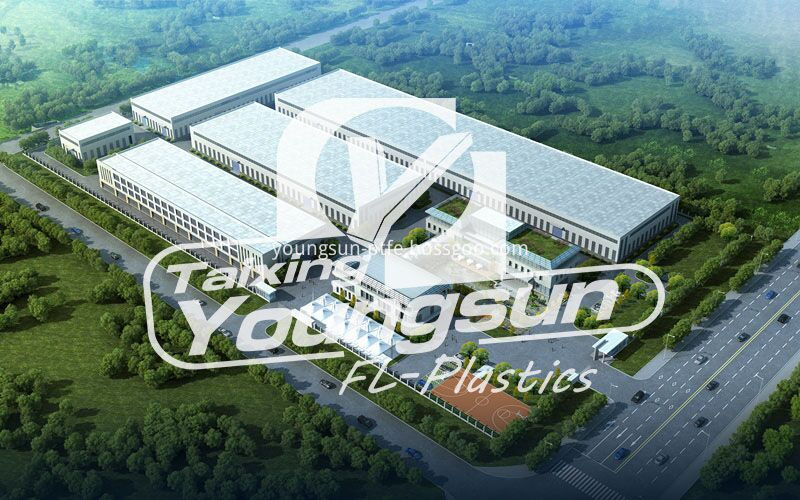

 Jiangsu Esone New Material Co., Ltd was founded in the year of 1990. It is located in Dasheng Industrial Zone,Taixing City,Jiangsu Province. After so many years` development, Youngsun is now a professional manufacturer specialized in processing PTFE and related fluorine chemical products and covering an area of 20000 square meters with more 200 employees. Younsun introduced advanced large high-speed production technology and control the whole process by automatic flow operation. which is equipped with modern inspecting facilities. We also have an excellent team consisting of experienced engineers as well as skillful technicians and workers,which have provided powerful guarantee for our product quality. Our product category covers PTFE Teflon adhesive tape,PTFE Teflon coated fiberglass cloth,Silicone rubber coated fiberglass cloth,Fluorin rubber coated fabric,PTFE Teflon coated fiberglass open mesh conveyor belt,PTFE Teflon oven liner,PTFE thread seal tape,Fluorescent lamp starter, and so on. As we always bear in mind prompt delivery, quality products, competitive price and excellent service, we are accepted as a trusty partner by customers both at home and abroad. Our products are now selling quite well in Europe, North America, Australia, Japan, Middle Asia and other market. If you are searching for reliable manufacturer for above products, contact us immediately!
