Home > Products > High Pressure Steel Cylinder > Oxygen Nitrogen Argon Seamless Steel Gas Cylinder

Oxygen Nitrogen Argon Seamless Steel Gas Cylinder

Productivity:
30000PCS/Month
Place of Origin:
China
Supply Ability:
30000PCS/Month
  • Mr. Catherine Zhou

Basic Info

Model No.:  50L

Product Description

  • Model NO.: 50L
  • Usage: Storage Gas
  • Power: Pneumatic
  • Pressure Direction: Double-acting Cylinder
  • Special Cylinder Type: Impact of the Cylinder
  • Pressure: 150bar/200bar
  • Outside Diameter: 108mm-267mm
  • Wall Thickness: 3.6mm-5.7mm
  • Color: Green ,Orange ,Blue or Grey
  • Name: High Pressure Steel Seamless Cylinder
  • Trademark: TOPLONG
  • Origin: China
  • Material: Steel
  • Structure: General Cylinder
  • Standard: Standard, Nonstandard
  • Double-Acting Cylinder Type: Common Cylinder
  • Combination Cylinder Type: Pressurized Cylinder
  • Water Capacity: 10L-50L
  • Cylinder Height: 447mm-1450mm
  • Steel Cylinder Standard: En ISO9809 /GB5099
  • Cylinder Hs Code: 73110090
  • Productivity: 10, 000 PCS/Month
  • Specification: ISO9809 /GB5099
  • HS Code: 73110090
Seamless Steel Oxygen Hydrogen Argon Helium CO2 Gas Cylinder
(EN ISO9809 /GB5099)


Gas Cylinder specification

1.Gas:Oxygen/Hydrogen/Argon/Helium/CO2......

2.WP: 150Bar-230Bar

3.Capacity:1L-50L

4.Certification:TPED

Our manufactured Seamless Steel Gas Cylinders are made from moblie high-pressure vessels. They are manufactured with the most advanced technology, machinery and equipment in the word. They are ideal for holding permanent gases, such as oxygen, hydrogen, argon and carbon dioxide,and etc.

Should you have any potential needs of gas cylinders & accessaries, medical gas equipments, welcome to contact us.

Advantages we have:

-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch , CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000pcs of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50 PCS;
-7)Exporting experience: We have over 5 years' experience for exporting business.

What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);



Serial No. Type Nominal working Pressure(MPa) Water test pressure(MPa) Volume(L) Nominal Outer Dia(mm) Design Length(mm) Weight(kg) Material for cylinder Carry out standard
Wall
Thickness(mm)
8 WMA219-20-15 15 25 20 219 5.7 715 28 37Mn ISO9809
9 WMA219-32-15 15 25 32 219 1075 39 37Mn
10 WMA219-36-15 15 25 36 219 1195 42.5 37Mn
11 WMA219-38-15 15 25 38 219 1245 45 37Mn
12 WMA219-40-15 15 25 40 219 1305 46.5 37Mn
13 WMA219-45-15 15 25 45 219 1455 52.5 37Mn
14 WZA267-68-15 15 25 68 267 6.1 1500 74 37Mn ISO9809
15 WZA267-70-15 15 25 70 267 1540 76 37Mn
16 WZA267-80-15 15 25 80 267 1740 84 37Mn
17 WZA267-82-15 15 25 82 267 1780 86 37Mn
21 WGA232-40-20 20 30 40 232 5.5 1200 48.5 34CrMo4 ISO9809
22 WGA232-47-20 20 30 47 232 1385 55 34CrMo4
23 WGA232-50-20 20 30 50 232 1460 58 34CrMo

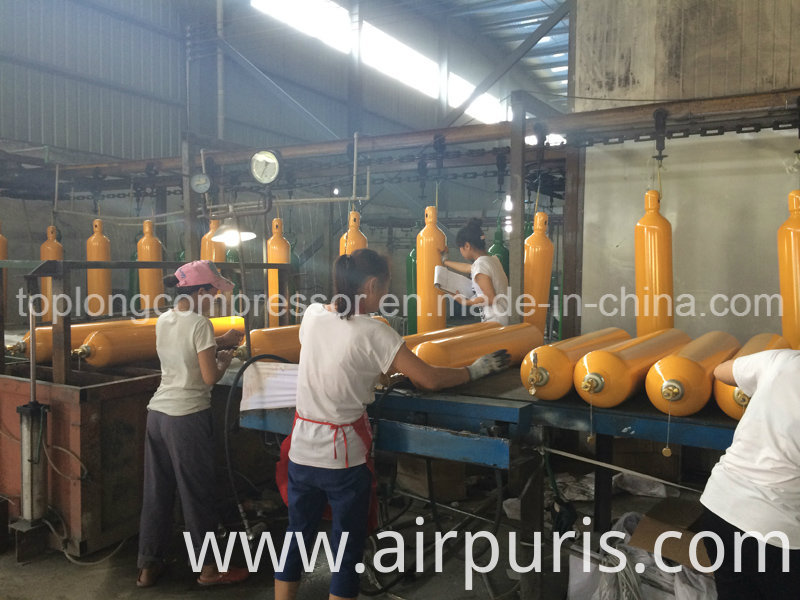

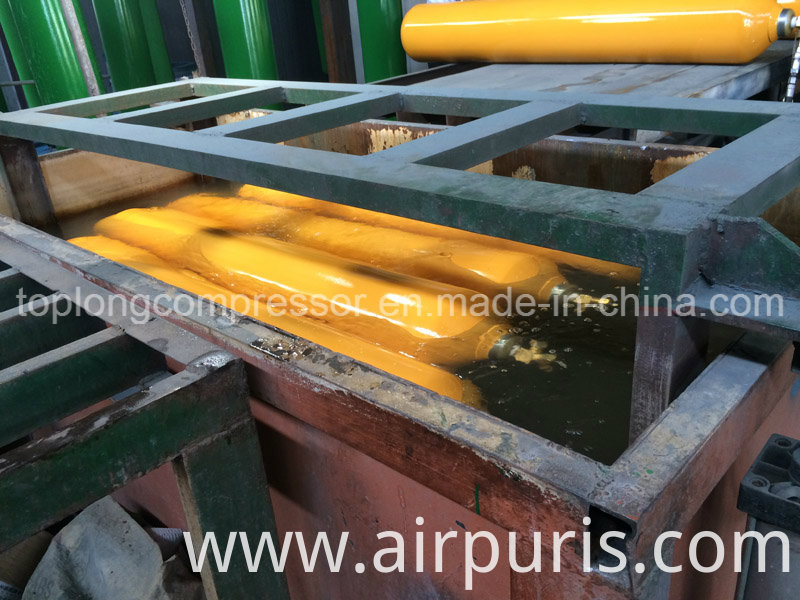

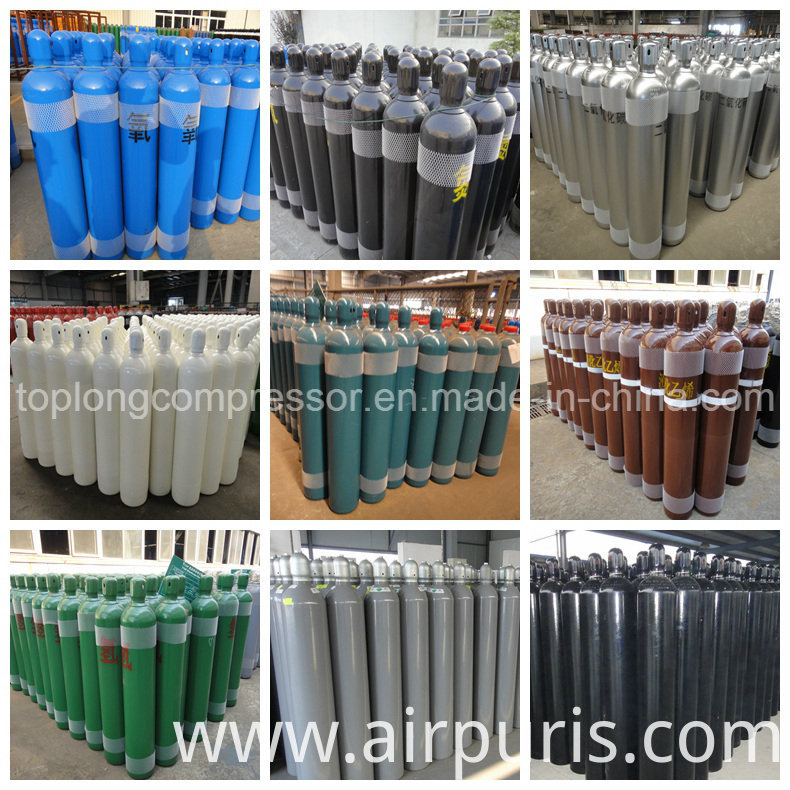

Gas Cylinder Picture :
Oxygen Nitrogen Argon Seamless Steel Gas Cylinder
Oxygen Nitrogen Argon Seamless Steel Gas Cylinder
Oxygen Nitrogen Argon Seamless Steel Gas Cylinder

Contact us if you need more details on Oxygen Cylinder. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Nitrogen Cylinder、CO2 Cylinder. If these products fail to match your need, please contact us and we would like to provide relevant information.
