Compressed Air Line Filters for Air Compressor

  • Compressed Air Line Filters for Air Compressor
  • Compressed Air Line Filters for Air Compressor
  • Compressed Air Line Filters for Air Compressor

Compressed Air Line Filters for Air Compressor

    Transportation: Ocean,Land,Air,Express
    Supply Ability: 20000PCS/M
    Port: Shenzhen,Guangzhou,Shanghai

Basic Info

Model No.: YD-220

Product Description

When compressed air line filters need to be changed?


This is different in actual use. Generally speaking, the service life of the filter reaches 8000 hours under rated working conditions. If the intake conditions are very poor, and the dust and oil content are high, the life of the filter element will be shortened.
In a dusty environment, the replacement time should be shortened. It is recommended to replace the filter or filter element around 6000 hours in order to obtain cleaner compressed air. Choosing a high-quality compressed air precision filter element can effectively reduce the user's maintenance costs.

YUKA as one of the famous manufacturers in the world, we are contributed to supply high quality Cartridge Filter for air compressors and other pneumatic products.


Here, we are pleased to recommend our YD-B220 Air Purifier Filter for you, inlet/out Rc2", air flow rate 12 m3/min, max. working pressure up to 16 bar, designed to remove oil mist and odor in compressed air system, installed in the back of refrigerated air dryers, protecting the whole compressed air system and other pneumatic equipment to be polluted .It is ideal solution for removing pollutants in compressed air systems and saving energy.


If you're looking for more Air Compressor filter for automatic equipment, food and beverage industry, please feel free to contact us.

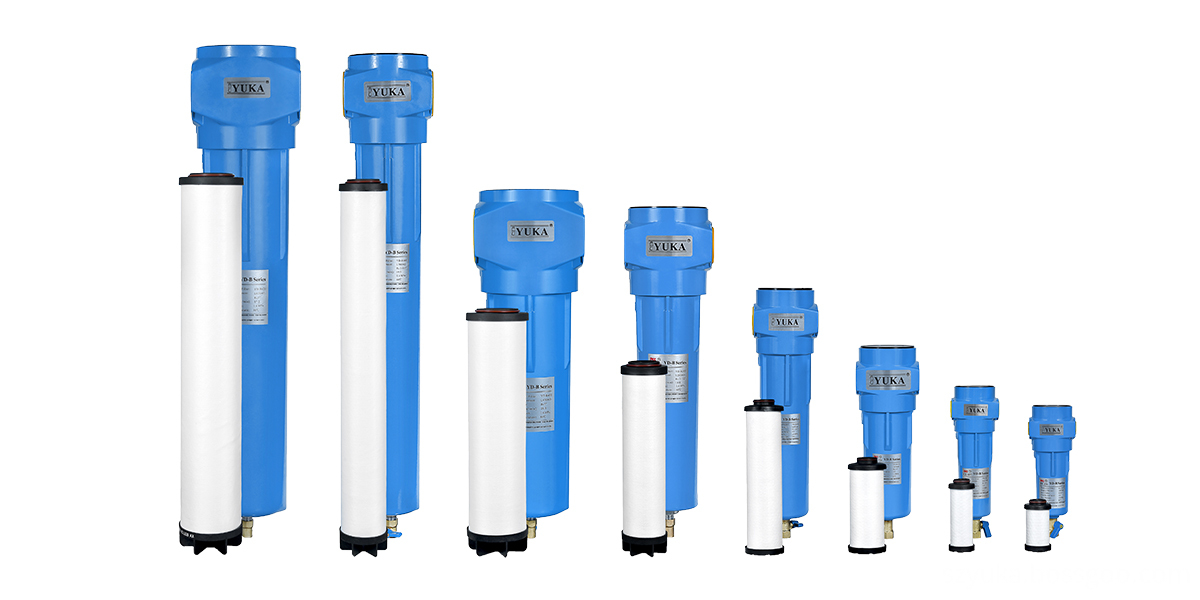

YD-B Series Air Filter
Product Advantages:

a. The filter housing is made of aluminum alloy by die-casting and has a compact structure to ensure safe use.
b. All housings are cleaned, degreased and specially anti-corrosion treated before spraying to improve durability and can be applied to offshore platform operations.
c. The precise threaded interface makes installation and maintenance easier and more convenient.
d. All housings are tested under working pressure 32bar for 96 hours, and the maximum burst pressure is 105bar.
e. Under the working condition of 1.5-80 ºC and pressure 16 bar, the body is guaranteed 15 years,
and the service life of the filter element is

6000-8000 hours.

Technical Specification:
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 bar g (100 psi g). For the application in other working pressure, please refer to the correction factors.

YD-B Series Product Selection

Drawing of YD-B

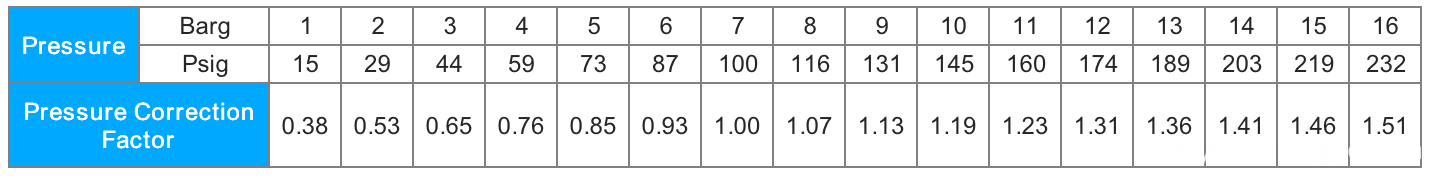

Correction Factor YD-B

YD-B Filter Element

Air Filter Element Grades

YD-B Series Filter Element Grades


Frequently Asked Questions?

Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.

Q3. What is the delivery time?

Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.

Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.

Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.

Q6. Usually what kind of transportation mode you supply?
A: By sea, by air , by train and express.

Q7. Could you Calculate the shipping cost for me?
Yes, we are honored to do that for you! Before the freight , please well let us know which seaport or airport near your place.
